Fresnel lens arrays for PIR applications are useful in a wide range of devices, such as automatic lighting switches, occupancy sensors, and motion sensor alarms.
Though commodity PIRs are commonly available and appropriate for general consumer use, precision PIR lens arrays like those in the FTI catalog below, are designed to meet the needs of commercial grade lighting and security.

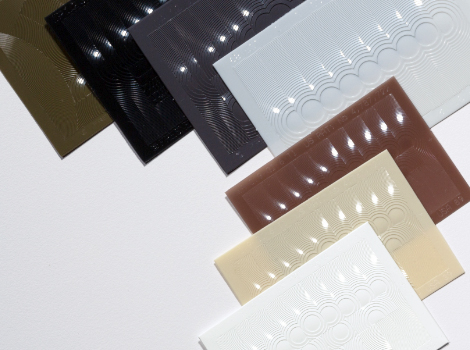

Fresnel lens arrays for PIR applications produce a broad, tailored field of view through the accumulation of many repeated narrow fields of view.
We currently offer seven series of standard, ready-to-ship PIR Fresnel lens arrays, in addition to a few assorted types. Each series contains a number of lens arrays, each of which has the same mechanical size and shape but offers a different detection pattern.
If a custom-designed part is needed, we are happy to collaborate with you on custom PIR lens designs. If you purchase tooling and the resulting lens arrays from us, there is no charge for the design.
| Series | Focal Distance |
Downward Tilt |
Description | Spec Sheet |
|
XX1.2GI12VX |
1.2" (30.5mm) |
12° |
Popular for burglar alarm sensors |
|
|
XX0.9GI6TX |
0.9 in (22.9mm) |
6° |
Popular for burglar alarm sensors; used to make smaller sensors than the XX1.2GI12VX |
|
|
CM1.0GIVX |
1.0in (25.4mm) |
Ceiling mount line; used for lighting control from offices to warehouses |
|
|
|
CM0.77GIVX |
0.77 in (19.6mm) |
Ceiling mount line; used for lighting control from offices to warehouses |
||
|
XX0.5GIVX |
0.5in (12mm) |
Hemispherical, extremely rugged, board-mounted |
||
|
XX0.25GIVX |
0.25 (6.4mm) |
Mounts directly to a TO-5/TO-39 package pyroelectric detector, and is available in a version that works with surface mount pyroelectric detectors from various manufacturers |
||
|
XX.9GOVX |
0.9 in (22.9mm) |
Used with the grooved side of the array facing outward |
||
|
Various Lens Arrays |
Download our brochure to learn more about our various lens arrays. |
